Get one of our Vizi-Fast Hi-Speed doors

We manufacture the Vizi-Fast High speed doors in-house, which gives us the ability to offer all the advice and guidance you may require. Parts are readily available onsite, for all your repair and maintenance needs. We pride ourselves on manufacturing our own products here in the UK.

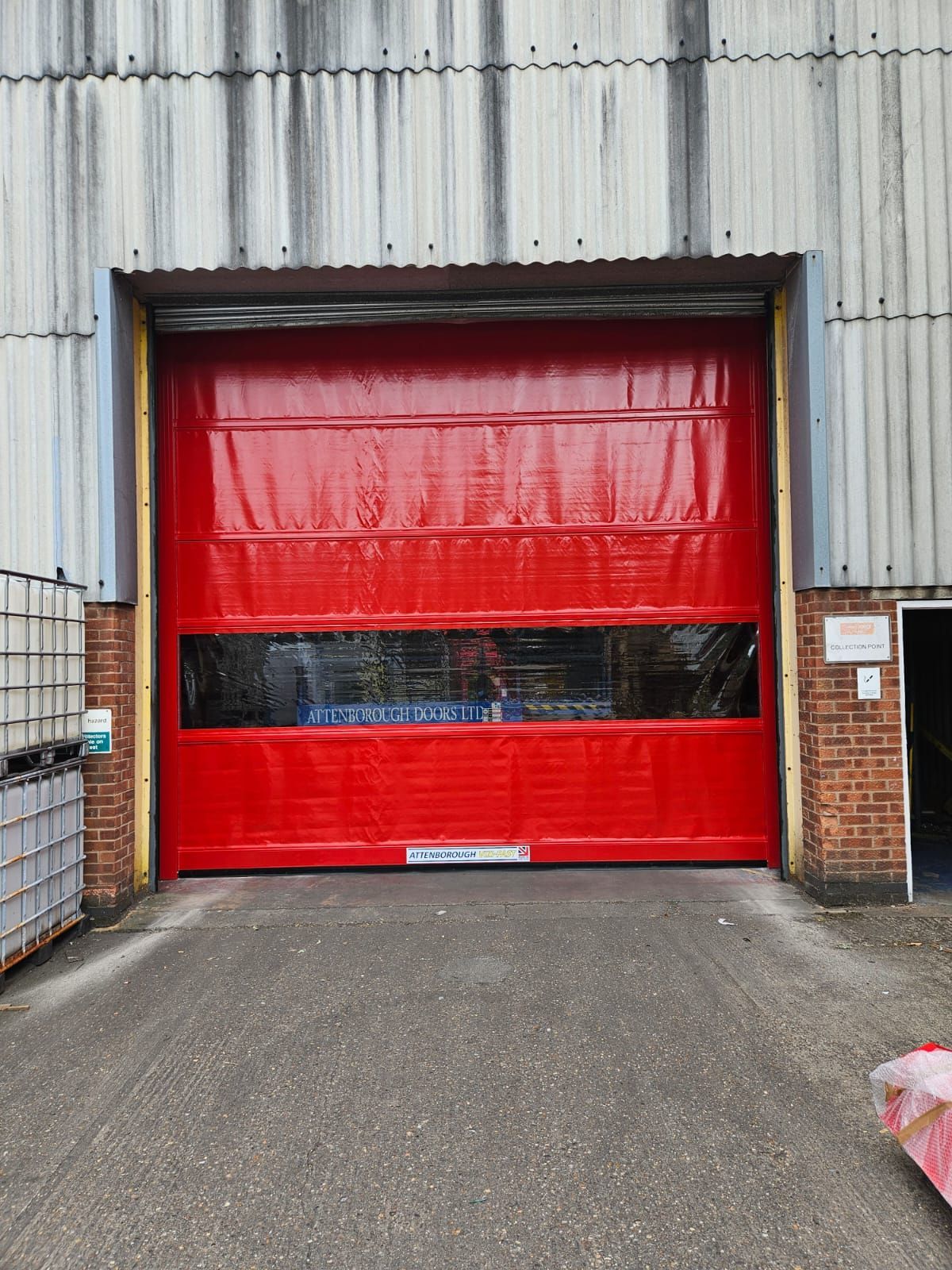

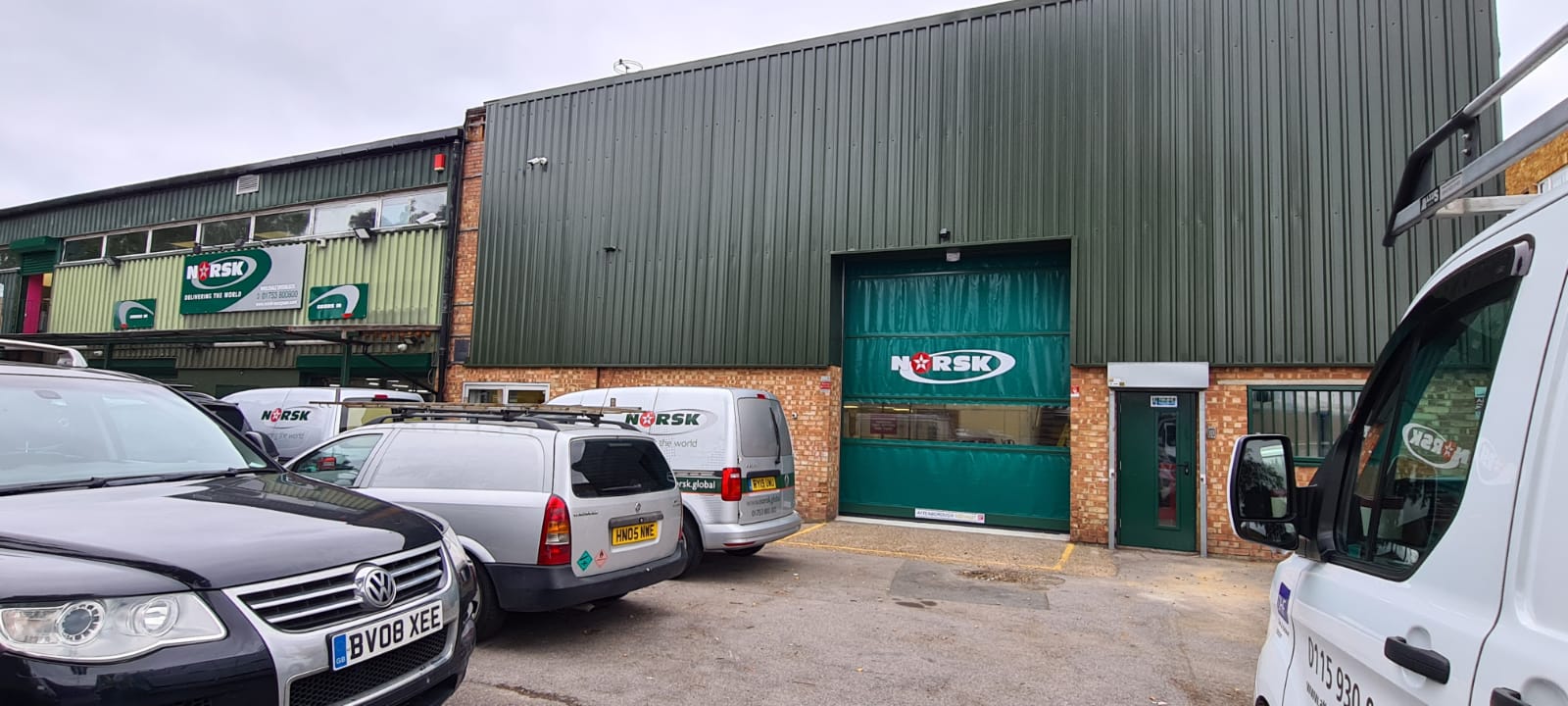

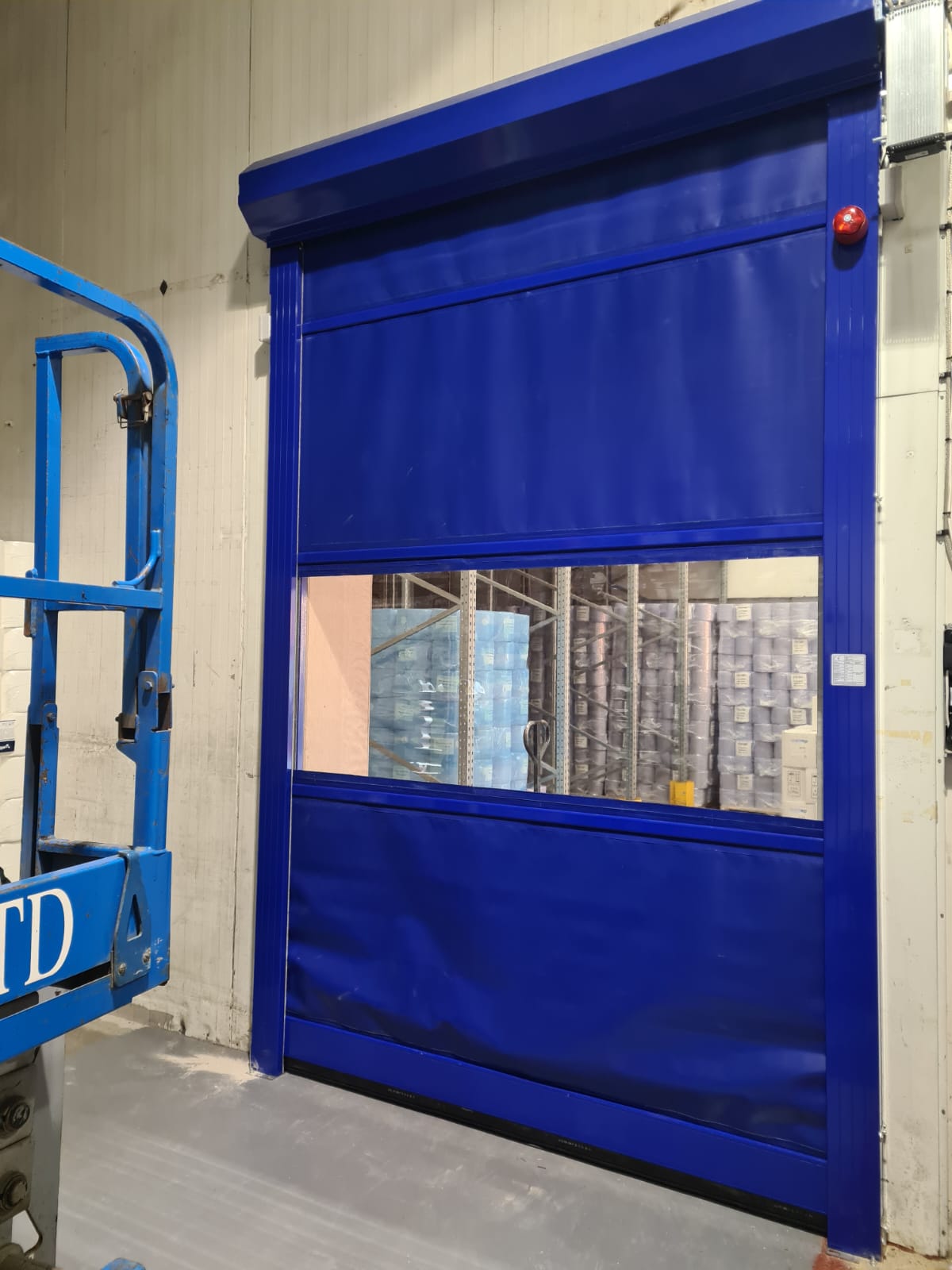

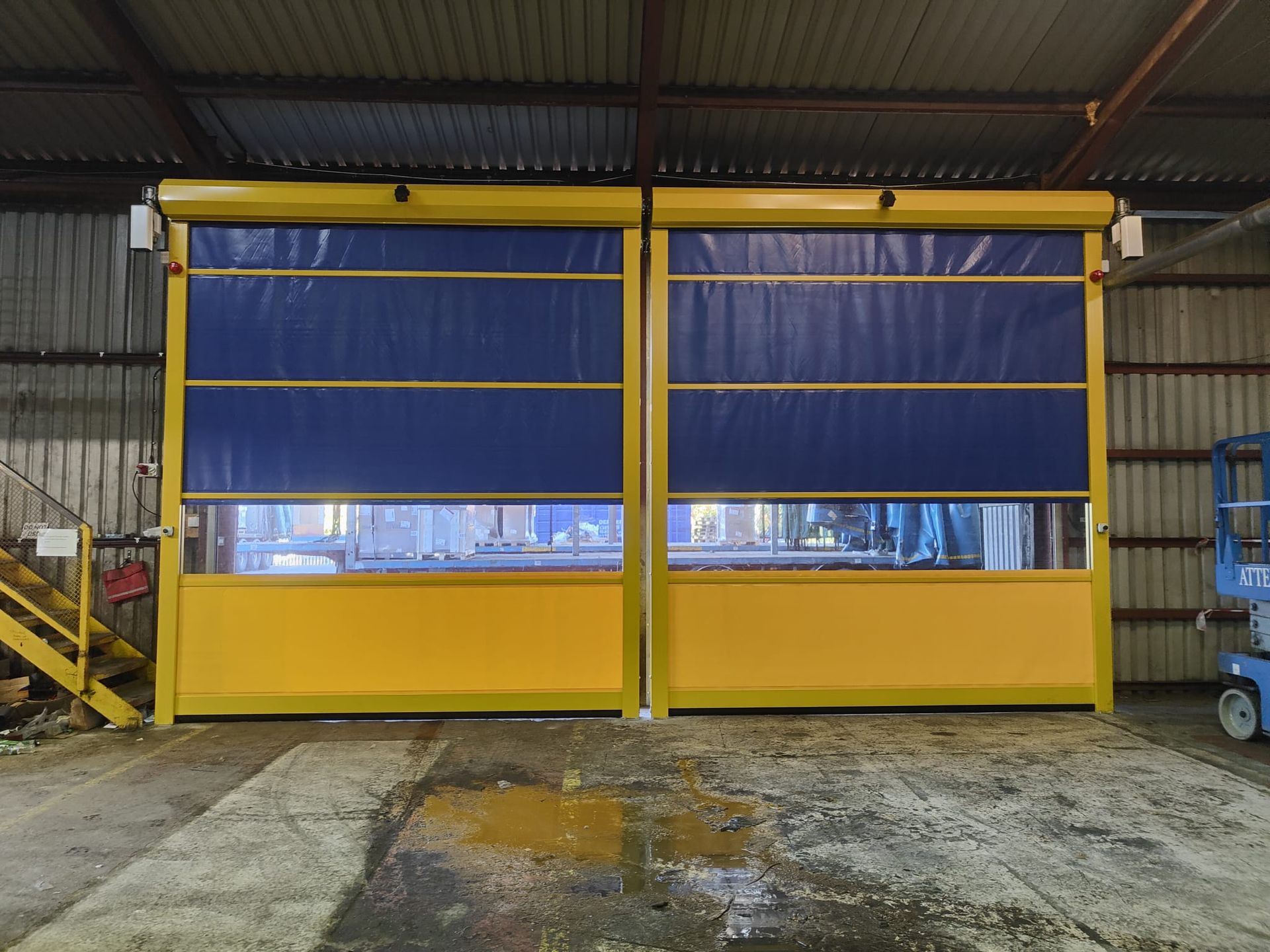

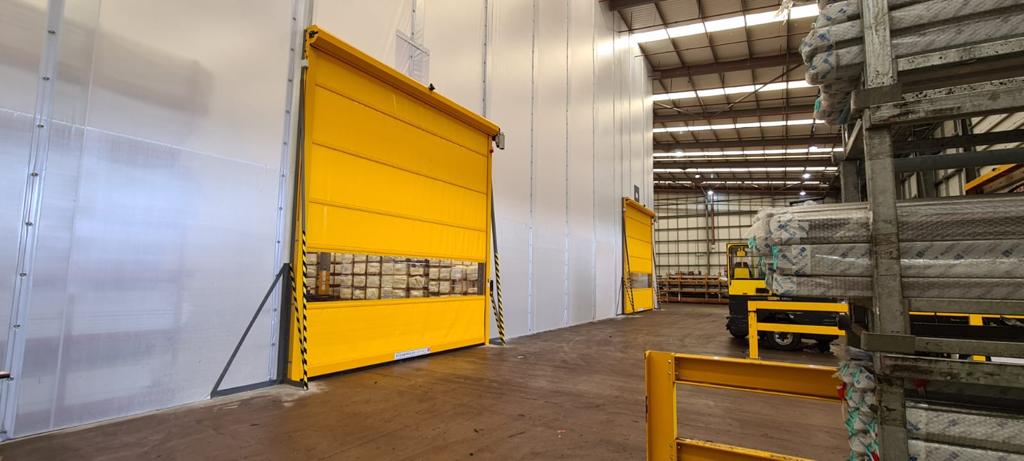

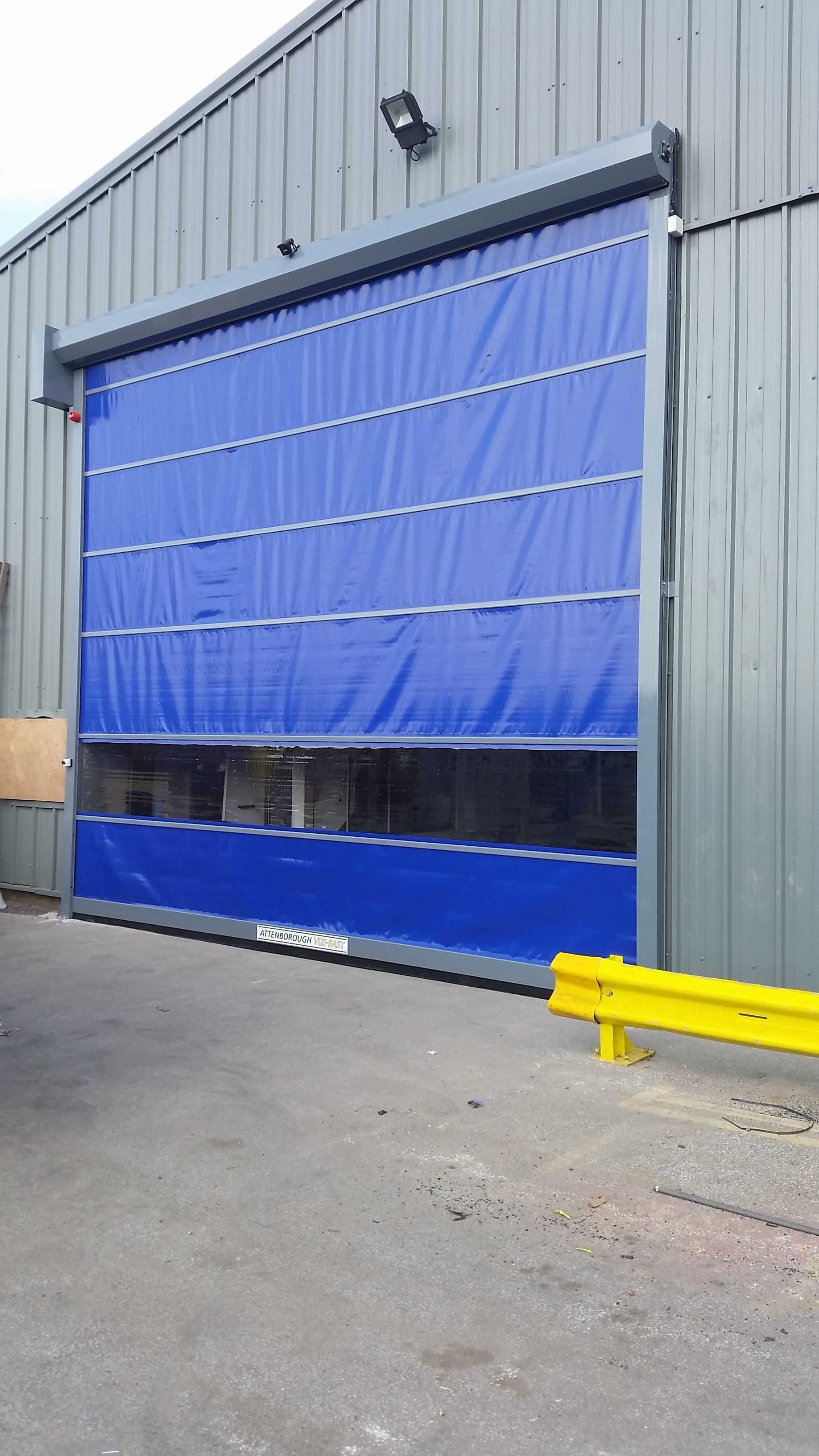

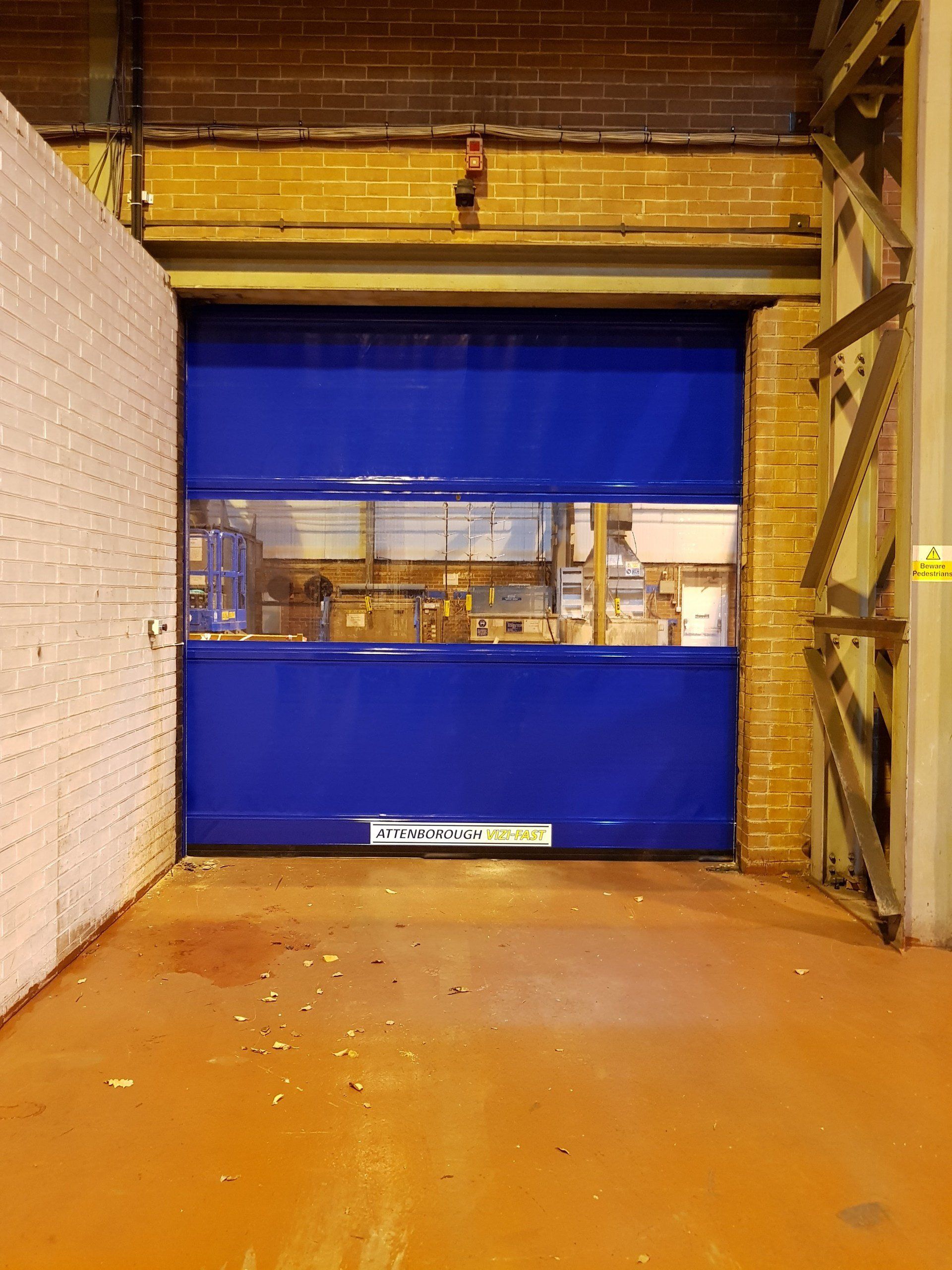

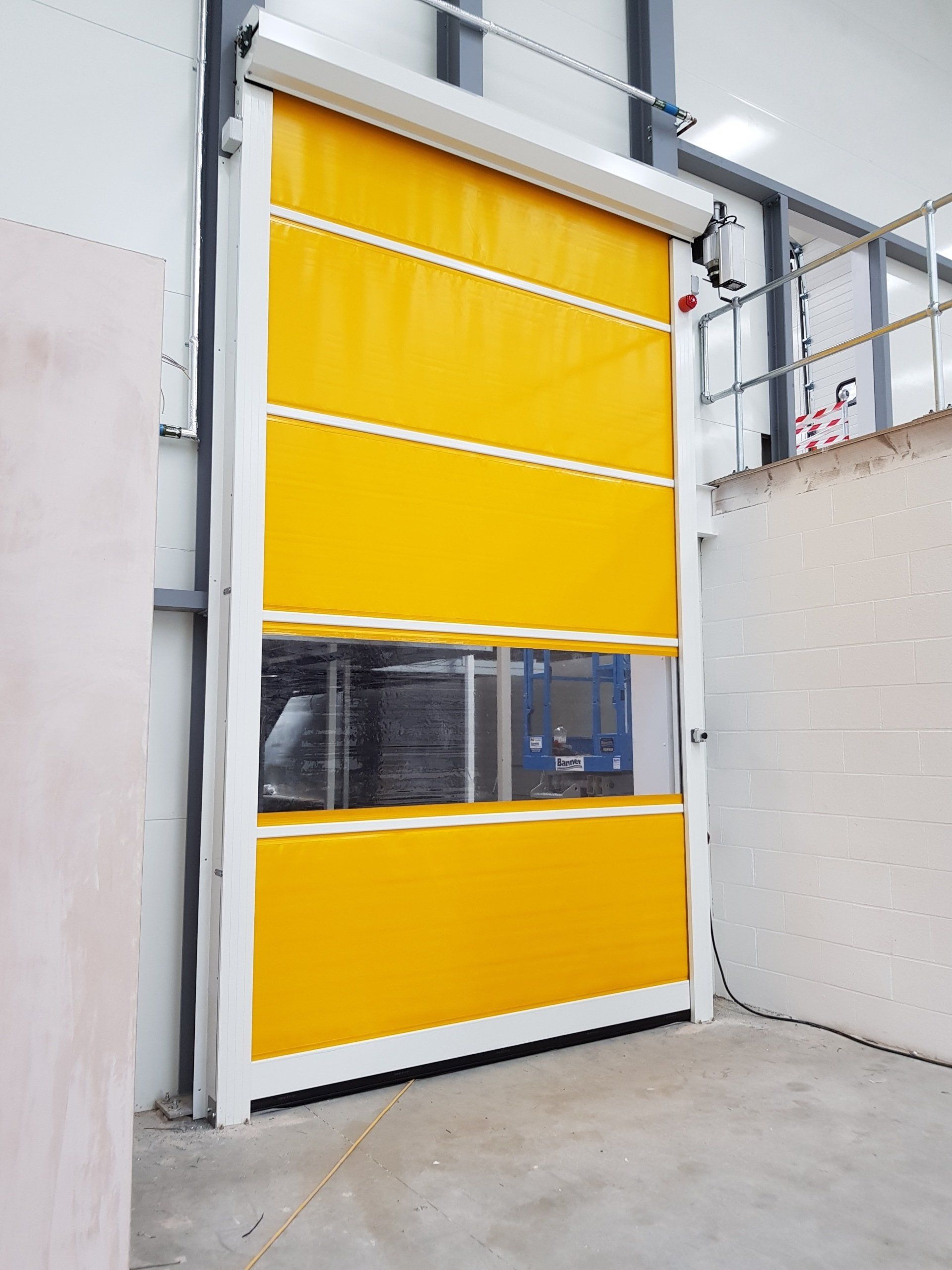

Our Vizi-Fast Hi-Speed door curtains come in yellow as standard, other colours are available at an extra cost. Each door is supplied with a full width vision panel as standard. Safety is an essential requirement so every Vizi-Fast door comes complete with a safety light curtain located within the side guides to a minimum height of 2400mm, or a wireless safety edge plus photocell, depending on the door location.


If you are looking for an efficient solution that can reduce energy and heat losses in your building, then you should definitely consider one of our Hi-Speed doors.



DIMENSIONS

Maximum size available 5000mm wide x 5000mm high

Guide channels - 140mm x 100mm

Overhead Space - 500mm required

Projection - 450mm

Motor side - 200mm

Other side - 60mm


HEAD

Can be supplied with canopy & motor cover (in colour coated finish) for external installations. Operates at 1.0m/s with soft start/soft stop.


CURTAIN

Hi-Viz yellow curtain as standard to help reduce the risk of collision by vehicles (other colours are available at extra cost)

Full width 900mm deep clear vision section for maximum visibility.

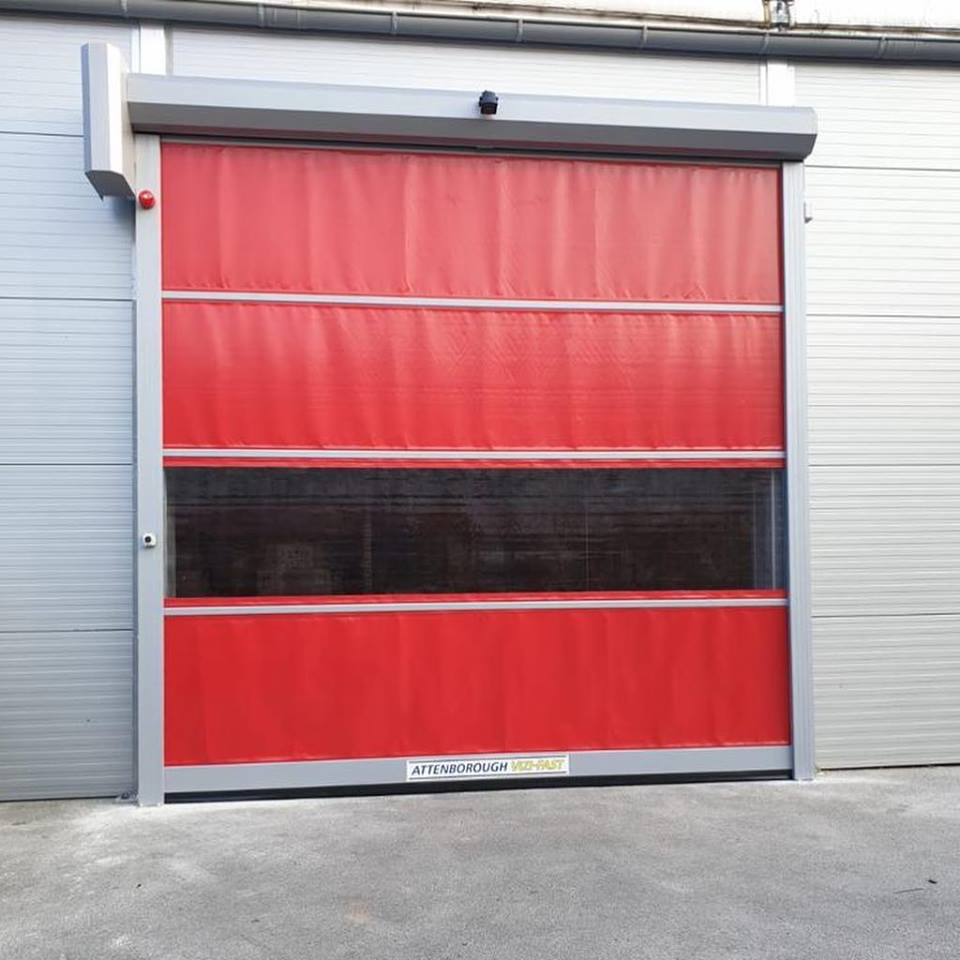

Company logo or any wording can be added to the curtain for an extra cost.


CONTROL PANEL

Various operating parameters are set at installation stage to suit site conditions or customers requirements

FRAME

Extruded aluminium legs including integral seals and extruded aluminium wind/connecting bars and bottom rail.

OPTIONS

Several operating options available, i.e. induction loops (inc cutting & back filling), motion sensor (can be programmed to discriminate between personnel, machines and cross traffic) pull chain, push button, radio receiver and either fork truck mounted or hand held transmitters.

Specifications

Vizi-Fast drawing

Please click to see our standard Vizi-Fast drawing

Which colour?

Please see our standard colour choices for your Vizi-Fast curtain

Vizi-Fast brochure

Feel free to download our Vizi-Fast brochure for further information

Vizi-Fast Logbook

Please feel free to download a copy of our Vizi-Fast logbook for all your maintenance and advice
